HYF型系列化工液下泵是立式單級單吸離心泵。用于輸送不含固體顆粒和不易結晶的有腐蝕性液體（特殊定制可輸送微量結晶液體）。被輸送介質溫度-20℃～200℃。液下泵工作部分淹沒在液體內，軸封無泄漏現象。且占地面積小，使用可靠，維修方便，耐腐蝕性能強等特點。廣泛適用于化工、制藥、造紙、石油等工業部門
HYF型系列化工液下泵,具有結構合理?選材合理?適用介質廣?耐腐蝕性能強?節能效果好?噪聲低?運行平穩等特點?電動機采用符合IEC標準的Y系列電機,也可根據需要配用防爆型電機?
該泵主要輸送酸?堿?鹽?油品?飲料,有機溶劑等液體,廣泛適用于環保?化工?儀表?機電?輕工?石油?冶金?醫藥?食品?衛生等行業?

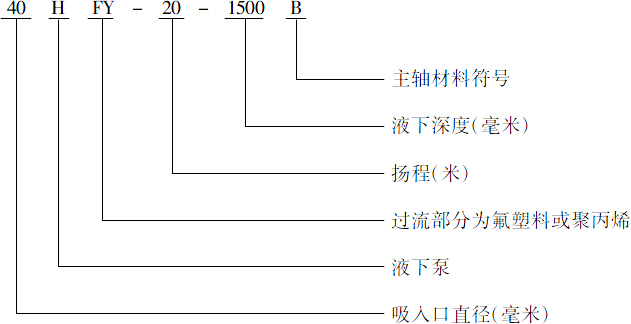

二?型號說明
。
| 型號 | 轉數(r/min) | 流量(m3/h) | 揚程 | 電機功率（KW） | 出口口徑 |
| 25HYF-6 | 2900 | 1.2 | 7 | 0.37～0.55 | 20 |
| 1.5 | 6 | ||||
| 2.5 | 5 | ||||
| 25HYF-16 | 2900 | 1.5 | 17.5 | 0.55～0.75 | 20 |
| 2.5 | 16 | ||||
| 3.5 | 14.5 | ||||
| 32HYF-20 | 2900 | 3.5 | 22 | 1.1～1.5 | 25 |
| 5.5 | 20 | ||||
| 7.5 | 16 | ||||
| 40HYF-20 | 2900 | 5 | 22 | 1.5～2.2 | 32 |
| 7.5 | 20 | ||||
| 10 | 16 | ||||
| 1450 | 2.5 | 5.5 | 0.37～0.55 | ||
| 3.75 | 5 | ||||
| 5 | 4 | ||||
| 50HYF-25 | 2900 | 12 | 28 | 3～4 | 40 |
| 17 | 25 | ||||
| 25 | 16 | ||||
| 1450 | 6 | 7 | 0.75～1.1 | ||
| 8.5 | 5 | ||||
| 12.5 | 4 | ||||
| 50HYF-50 | 2900 | 7.5 | 52 | 5.5～7.5 | 32 |
| 12.5 | 50 | ||||
| 15 | 48 | ||||
| 1450 | 3.75 | 13 | 1.1～1.5 | ||
| 6.3 | 12.5 | ||||
| 7.5 | 12 | ||||
| 65HYF-20 | 2900 | 15 | 21.5 | 4～5.5 | 50 |
| 25 | 20 | ||||
| 30 | 18.5 | ||||
| 1450 | 7.5 | 5.3 | 1.1～1.5 | ||
| 12.5 | 5 | ||||
| 15 | 4.5 | ||||
| 65HYF-32 | 2900 | 15 | 34 | 5.5～7.5 | 50 |
| 25 | 32 | ||||
| 30 | 30 | ||||
| 1450 | 7.5 | 8.5 | 1.5～2.2 | ||
| 12.5 | 8 | ||||
| 15 | 7.5 | ||||
| 65HYF-50 | 2900 | 15 | 53 | 7.5～11 | 40 |
| 25 | 50 | ||||
| 30 | 47.5 | ||||
| 1450 | 7.5 | 13 | 2.2～3 | ||
| 12.5 | 12.5 | ||||
| 15 | 11.5 | ||||
| 80HYF-20 | 2900 | 30 | 23 | 5.5～7.5 | 65 |
| 50 | 20 | ||||
| 60 | 17 | ||||
| 1450 | 15 | 6 | 1.1～1.5 | ||
| 25 | 5 | ||||
| 30 | 4 | ||||
| 80HYF-32 | 2900 | 30 | 36 | 7.5～11 | 65 |
| 50 | 32 | ||||
| 60 | 28 | ||||
| 1450 | 15 | 9 | 1.5～2.2 | ||
| 25 | 8 | ||||
| 30 | 7 | ||||
| 80HYF-50 | 2900 | 30 | 55 | 15～18.5 | 50 |
| 50 | 50 | ||||
| 60 | 45 | ||||
| 1450 | 15 | 13.5 | 3～4 | ||
| 25 | 12.5 | ||||
| 30 | 11 | ||||
| 100HYF-20 | 2900 | 60 | 24 | 11～15 | 80 |
| 100 | 20 | ||||
| 120 | 16 | ||||
| 1450 | 30 | 6 | 2.2～3 | ||
| 50 | 5 | ||||
| 60 | 4 | ||||
| 100HYF-32 | 2900 | 60 | 36 | 15～18.5 | 80 |
| 100 | 32 | ||||
| 120 | 28 | ||||
| 1450 | 30 | 9 | 3～4 | ||
| 50 | 8 | ||||
| 60 | 7 | ||||
| 100HYF-50 | 2900 | 60 | 56 | 18.5～22 | 65 |
| 100 | 50 | ||||
| 120 | 44 | ||||
| 1450 | 30 | 14 | 5.5～7.5 | ||
| 50 | 12.5 | ||||
| 60 | 11 | ||||
| 125HYF-50 | 2900 | 120 | 61 | 37～45 | 100 |
| 200 | 50 | ||||
| 240 | 41 | ||||
| 1450 | 60 | 15 | 7.5～11 | ||
| 100 | 12.5 | ||||
| 120 | 10 | ||||
| 150HYF-20 | 1450 | 120 | 24.5 | 18.5～22 | 125 |
| 200 | 20 | ||||
| 240 | 15 | ||||
| 200HYF-20 | 1450 | 240 | 23 | 37 | 150 |
| 400 | 20 | ||||
| 460 | 18 |
